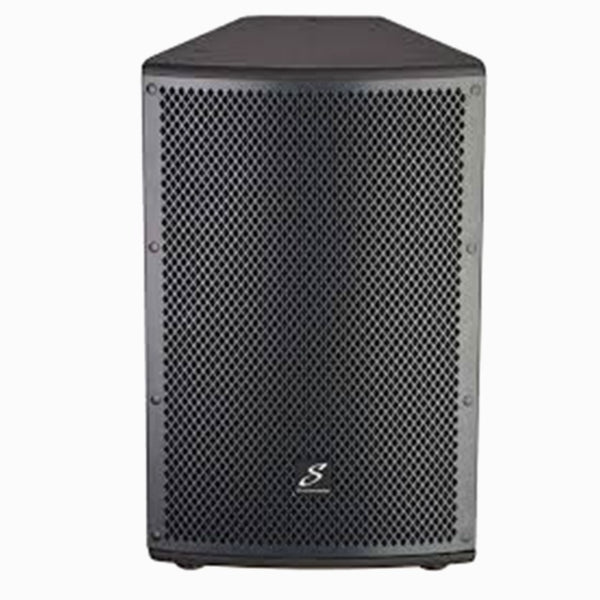

Studio Master TRX10 10Inch Passive Speaker Cabinet

Studio Master TRX10 10Inch Passive Speaker Cabinet Overview: The TRX series is a range of high performance, versatile enclo- sures with a massive 15 models to choose from, with both passive and active models in the range. All models feature cast aluminium chassis heavy duty bass transducers with large 1” throat compression drivers, packaged in a rugged hard wearing paint finish.

TRX10, 12, 15 and 15M passive and active models have multiple M10 hanging points, and the TRX10, 12 and 15 also feature 35mm pole sockets. All models have large recessed side handles, and for total ease the larger 2×15” TRX215 comes with rear mounted castors.

Specifications: Type: 10″ 2 way passive speaker Frequency response (-10dB): 60Hz–20KHz Sensitivity 1w @ 1m: 94dB Rated impedance: 8Ω Power handling: 200W(Cont)800W(Peak) Crossover frequency: 2.0KHz LF: 10″ /50mm voice coil HF: 34mm comp driver/1″ throat Coverage (HxV): 80°x60° Max SPL (@1m): 124dB Input mode: 2×4-pole ind std sockets Hanging system: 12*M10 hanging points Dimensions (WxHxD): 354×555×426 (mm) Weight: 19Kg
